Professional Roofing Sheet Making Machine , Roof Panel Roll Forming Machine 3kw Power

Name: Professional Roofing Sheet Making Machine Roof Panel Roll Forming Machine 3kw Power
Brand: CHBEST
Price: 1 USD

Wholesale Professional Roofing Sheet Making Machine , Roof Panel Roll Forming Machine 3kw Power from china suppliers

Brand Name : CHBEST

Model Number : XY51-38-760

Certification : CE/BV/SGS

Place of Origin : China Hebei

MOQ : 1 set

Supply Ability : 20 sets/month

Delivery Time : 20-30 days

Packaging Details : plastic film for naked machine

Product name : Meridian self clip lock standing seam metal roof sheet making roll forming machine

Roller material : 45#steel

Machine power : 3kw

Driven system : Chain or gear box

Cutting type : Hydraulic

Warranty : 2 years

Life time : more than 10 years

Contact Now

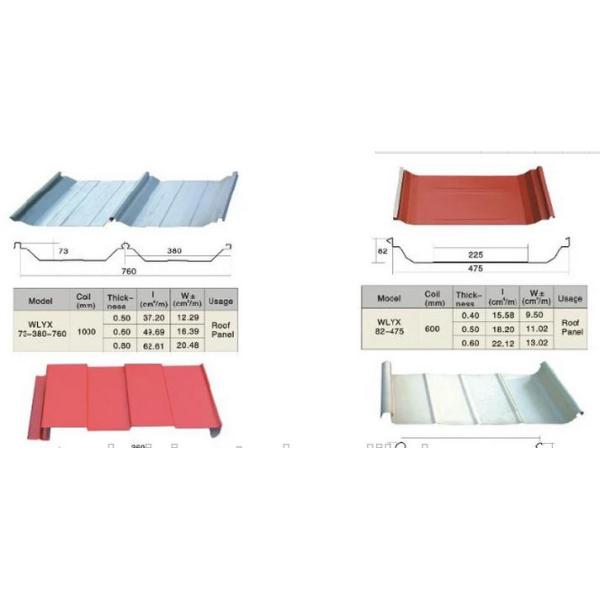

Meridian self clip lock standing seam metal roof sheet making roll forming machine

Meridian self clip lock standing seam metal roof sheet is an economical, snap-together, conceald fastener roofing panel, Meridian roof is ideal for residential and light commercial applications.

Working flow

Decoiler------feeding------roll forming------cut to length-----output table

Professional Roofing Sheet Making Machine , Roof Panel Roll Forming Machine 3kw Power

Machine components

No.	Name	Qty
1.	De-coiler	1 Set
2.	Roll Forming Machine	1 Set
3.	Hydraulic Cutting Device	1 Set
4.	PLC Control Box	1 Set
5.	Hydraulic Pump	1 Set
6.	Output table	1 Set

Decoiler

Type	Manual type(standard)	Hydraulic type(option)
Width	1250mm	1500mm
Capacity	Max 5tons	From 5-15 tons
Inner diameter	φ508-610mm	φ508-610mm
Outer diameter	φ1500mm	φ1800mm

roll forming

Item

Parameter detail

Processing Material

GI and PPGI

Material thickness

0.25-0.8mm

Machine frame

360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision

Machine siding panel

plate type	Pillar type(option)

Plate thickness:20mm	Pillar thickness:30mm
Painting:normal painting	painting:Chroming

Forming stations

16 stations(according to the profiles)

Machine rollers

high grade No.45 forged steel,plated hard chroming with thickness 0.05mm
Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming

Machine Shaft

φ70mm high garde No.45 steel after treatment,

Machine spacers

CNC lathing in high-precision

Machine bearings

China Haerbin bearing or SKF international bearing(option)

Driving system

1 inch chain or gear box(option)

Machine power

3kw-11kw(according to the profiles)

Machine working speed

8-12m/min or 10-30m/min(option)

Machine adjust type

After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm

Cutting

Type	bearing sliding type
Blade material	Cr12mov quenching and grinding
Blade processing	wire-electrode cutting, but the upper balde can not be straight. this is technology
Working	Hydraulic type

Stacker

Type	Manual	Auto(option)
Length	1.5m-2m	6m or 12m

PLC

Main item	Parameter detail
PLC	Delta(standard) or according to your request
Inverter	China brand(standard) or according to your request
Touch screen	Mcgs(standard) or according to your request
Encoder	China brand(standard) or according to your request
Voltage/HZ/Phase	380v/50-60hz/3phase

Hydraulic pump

Main Item	Parameter detail
Motor	3kw China brand or according to your request
Pump	China brand or according to your request
Solenoid valve	China brand or according to your request
Cooling system	Cooling fan

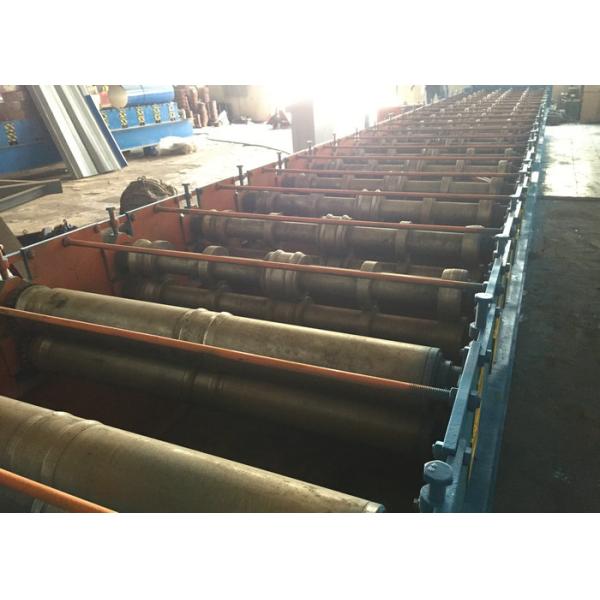

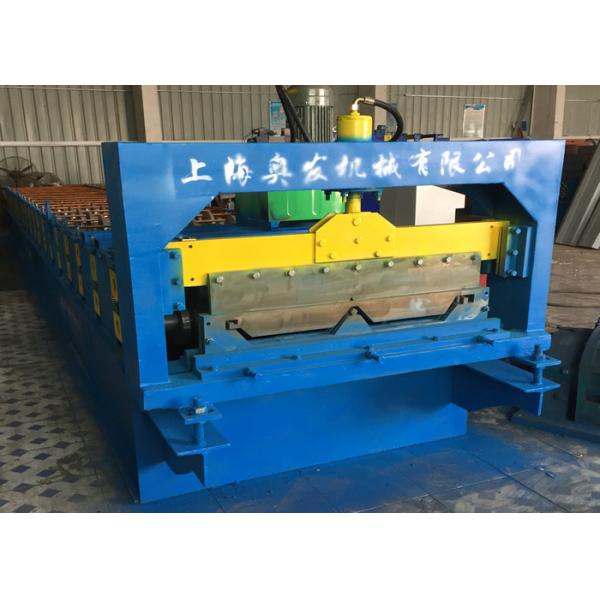

Machine Photo

Professional Roofing Sheet Making Machine , Roof Panel Roll Forming Machine 3kw Power
